Apollo 3-Port™ Mattress System- Model 4600Alternating Pressure Mattress System with Low Air Loss |
|
| The Apollo 3-PortTM Alternating Pressure Mattress System with Low Air Loss incorporates the features that clinicians demand for their patients in a portable system. The mattress utilizes 16 independent 8″ deep air cells to provide pressure redistribution for the prevention and treatment of Stages I-IV pressure ulcers. User friendly controls and ease of setup make Apollo 3-PortTM ideal for institutional use and the home-bound patient. The mattress is designed to fit all standard hospital beds. Apollo 3-PortTM support patient weights up to 350 lbs. Apollo 3-PortTM meets California Technical Bulletin #117 for fire retardancy. An optional fire barrier is available to meet the most stringent fire safety requirements when requested. |  |
 |
Bladders: Ventilated bladders include 40 air holes in sacral and torso areas to help minimize skin maceration by reducing excess moisture under patient. Air cells are constructed of (TPU) thermal polyurethane, laminated to a medical grade nylon. Dual bladder design prevents patients from bottoming out, while sitting up and will maintain air during power outages. Optional 4 bladder heel section provides advanced dynamic therapy specific to the prevention and treatment of heel ulcers.
|
 |
CPR Valve: CPR Valve quickly deflates mattress system for medical emergencies.

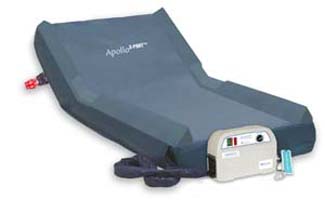

Cover: Vyvex-III® multi-directional stretch fabric Side Rail System: Shown with optional SRS, Side Rail System. |
|
|

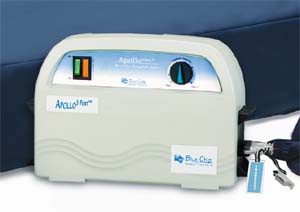

Pump Control Unit Features Unique 3-Port design provides continuous air flow to the 3″ static air base of mattress.
Adjustable Pump comes with adjustable hanger brackets to secure unit to bed. fits all makes of hospital beds. |
 |
The optional blower pump Optional pump is available to quickly inflate and deflate mattress through CPR valve in under 4 minutes. |
|

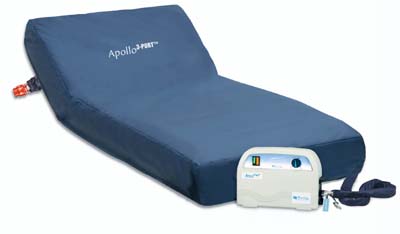

MODEL 4600
|
Apollo 3 Port TM – Mattress and Pump |
|
Dimensions:
|
35″ x 80″ x 8 “ |
|
Weight:
|
18 lbs. |
|
Air Cells:
|
16 – 8 ” sacs 13 Alternating cells 10 Ventilated cells with 40 air holes 3 Static cells in head section |
|
Air Cell Option:
|
14, 8″ bladders & 4 4″ foot section air bladders |
|
Mattress Cover:
|
Vyvex-III® – removable zippered, low shear,moisture resistant / vapor permeable cover. Removable zippered cover, is anti-microbial and meets California Technical Bulletin #117 for fire-retardancy. Adjustable anchor straps secures mattress to bed frame. |
|
MODEL 4601
|
Apollo 3 Port TM – Pump only | |
|
Dimensions:
|
10.75″L x 7.5″W x 3.5″H | |
|
Weight:
|
6.8 lbs. | |
|
Electrical:
|
120V 60 hz | |
|
Listings:
|
UL® 544 Medical Equipment |  |
|
Cycle Time:
|
10 Minutes | |
|
Air Flow:
|
7.5 Liters per minute | |
|
Current Usage:
|
less than 100 micro amps | |
|
Ground Resistance:
|
0.1 ohms maximum | |
|
Power Cord:
|
12 ft. cord | |
|
Construction:
|
ABS fire retardant UL 94V-0 | |
|
WARRANTY
|
||
|
Pumps:
|
1 Year limited | |
|
Mattress:
|
1 year limited | |
|
Cover:
|
6 months limited | |
|
ORDERING INFORMATION
|
|
|
Model 4600
|
Mattress and Pump Control unit |
|
Model 4600-SRS
|
Mattress and Pump Control unit with Side Rail System |
|
Model 4610
|
Pump Control Unit |
|
Model 4620
|
Mattress only |
|
Model 4622
|
Carry Bag with Strap |
|
Model 9623
|
Electric Inflator & Deflator |
|
Model 4624
|
Replacement 8″ Ventilated Bladders |
|
Model 4625
|
Replacement 8″ Cell Bladders |
|
Model 4626
|
Replacement Zippered Cover |
|
Model 4626-SRS
|
Replacement SRS Safety Rail System |
|
PDAC APPROVED
|
|
|
Medicare Code EO277
|
| Apollo 3-PortTM meets Group 2 Support Surfaces requirements for Medicare EO277. Patient must meet all medical criteria to qualify for reimbursement. |
