Geri-Gel Recliner Overlay- Model 6400
Gel Overlay Recliner Cushion

Patient comfort and pressure redistribution is achieved for individuals who sit for extended periods of time during theday. Fits most standard recliners. Special sizes available for use in Dialysis and Chemotherapy recliners. Ideal for home style lift chairs. The three section overlay is constructed with an aqueous, highly viscous gel that is encapsulated in a high density foam shell. The overlay is covered with Vyvex®-III Stretch Cover and a non-skid Bottom. An adjustable safety strap secures the overlay for added safety. Cover material is anti-microbial and fire-retardant.
Bariatric and custom sizes available.

Supports 250 lbs.


MODEL 6400 Geri-Gel Overlay
Dimensions: 19.5" x 69 " x 2.75"
Top: Med-Flex® VPF®
Center: Highly Viscous Gel
Base: High Density Med-Flex® VPF®
Top Cover: Vyvex-III® 4 way stretch knit Urethane, low shear, fluid proof, stain proof
Bottom Cover: Non-Skid Tri-Laminate Vinyl
ORDERING INFORMATION Geri-Gel Overlay
Model 6400 19.5" x 69 " x 2.75"
Custom and bariatric sizes available. Please state patient's weight when ordering
WARRANTY
Cushion: 18 month limited


Geri-Gel Bariatric Recliner Overlay- Model 6400B
Gel Overlay Recliner Cushion

Patient comfort and pressure redistribution is achieved for individuals who sit for extended periods of time during theday. Fits most standard recliners. Special sizes available for use in Dialysis and Chemotherapy recliners. Ideal for home style lift chairs. The three section overlay is constructed with an aqueous, highly viscous gel that is encapsulated in a high density foam shell. The overlay is covered with Vyvex®-III Stretch Cover and a non-skid Bottom. An adjustable safety strap secures the overlay for added safety. Cover material is anti-microbial and fire-retardant.
Custom sizes available.

Can Be Manufactured to Support 800 lbs.


MODEL 6400B Geri-Gel Bariatric Overlay
Dimensions: 20" x 69" x 4"
Top: Gel-Flex® Solid Gel incorporated into a Hexon® center section
Base: High Density Med-Flex® VPF®
Top Cover: Vyvex-III® 4 way stretch knit Urethane, low shear, fluid proof, stain proof
Bottom Cover: Non-Skid Tri-Laminate Vinyl
ORDERING INFORMATION Geri-Gel Overlay
Model 6400B 20" x 69" x 4"
Custom sizes available. Please state patient's weight when ordering
WARRANTY
Cushion: 18 month limited

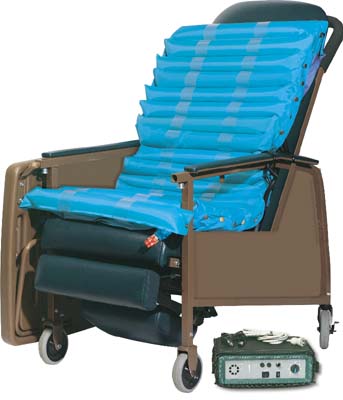

Chair-Air - Model 9700GR
Geriatric Recliner Mattress & Pump System

This unique alternating pressure mattress system allows for patients who are at high risk for pressure sores to be placed in a variety of mobile devices. Patients are no longer confined to bed for the whole day due
to risks of sitting without proper pressure redistribution. Chair-Air® systems can be integrated into a geriatric chair, recliner or standard high-back wheelchair. Twenty bladders gently alternate, providing low
interface pressures in addition to comfortably supporting the patient. The Chair-Air® 9700GR system includes the 9701 alternating pump. Chair-Air® meets California Technical Bulletin #117 for fire retardancy.

Supports 250 lbs.


MODEL 9700GR Chair-Air® - Geriatric Recliner Mattress
Dimensions: 25" x 45 " x 3.5 "
Weight: 10 lbs.
Air Cells: 20 - 3.25 " sacs
Cover: Low shear, zippered multi-stretch Vyvex® III, moisture / vapor permeable top cover, non-skid bottom. Cover is anti-microbial and meets California Technical Bulletin #117 for fire retardancy.
ORDERING INFORMATION Chair-Air® - Geriatric Recliner Mattress
Model 9700GR 20" x 69" x 4"
WARRANTY
Cushion: 12 month limited

Chair-Air® AC/DC® Model 9701
Alternating Pump

The portable Chair-Air AC/DC® Pump allows your patient to be totally mobile. A rechargeable battery backup keeps this system working for more than 6 hours per charge. Car adapter included.

For use with Chair-Air®,
Geriatric Recliner Mattress &
Chair-Air® Wheelchair Cushion
MODEL 9701 Chair-Air® - Pump only For use with Geriatric Recliner and Cushion
Dimensions: 14.5L" x 5W" x 12.5H"
Weight: 16 lbs.
Electrical: AC 117V/60hz, DC 12V 7 amps/hour
Listings: UL® 544 Medical Equipment
Cycle Time: 10 Minutes
Air Flow: 4 - 6 Liters per minute
Current Usage: AC 133mA, 11V DC 84mA, 7.4W
Ground Resistance: 0.1 ohms maximum
Power Cord: 12 ft. cord
WARRANTY
Pumps: 1 Year limited
Mattress: 1 year limited
Cover: 6 months limited
