Power Pro Elite™ Mattress System- Model 9500

Alternating Pressure Air Mattress System with Gentle Low Air Loss

The Power-Pro™ Elite Alternating Pressure Air Mattress System with Gentle Low Air Loss combines two clinically effective therapies: True Low Air Loss and Alternating Pressure, in a portable system. An optional pulsating low air loss therapy feature is available. The pressure distribution mattress utilizes 18 independent 9″ deep air cells to provide proper pressure redistribution for the prevention and treatment of Stages I-IV pressure ulcers. The new Power-Pro™ VW Elite bariatric model combines variable-width convenience with durability and wound prevention features. Available in three models to fit the most popular bariatric bed frames. The Power-Pro VW Elite fits 36”,  42”, 48”  bed frames and lengths up to 88″  The Power-Pro™ Elite Alternating Pressure Air Mattress System with Gentle Low Air Loss supports patients weighing up to 1000 pounds. An audible alarm system alerts caregivers of power outages. power pro elite alternating pressure mattress
Power Pro® VW is an expandable air mattress for variable mattress widths.
Optional Expandable Mattress:
Power Pro™ VW is an expandable air mattress system that allows for variable mattress widths. 36″, 42″ & 48″ supporting 1000 lbs and variable lengths 80″, 84″ & 88″.Options for the Expandable Mattress:
Power Pro™ VW has two optional features
– Automatically adjusting 2 position fowler sensor
– Enhanced Low Air Loss through a unique Ventilated Low Air Loss Vyvex-I Cover.
This enhances therapy and helps create and control micro-climate.

Cover:
Vyvex – III™ – Urethane coated, multi-stretch, moisture resistant / vapor permeable, low shear, quilted cover, transfers moisture away from the patient’s skin. The cover is washable, anti-microbial, fluid-resistant, and fire-retardant.

Power Pro Elite®
Hose connections
Hose connections feature a transport locking device that ensures the mattress remains inflated for patient transport.CPR Valve
CPR Valve quickly deflates the mattress system for medical emergencies. A simple twist releases air immediately.

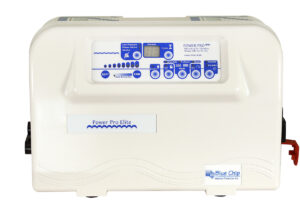

power pro elite new pump Blower Pump
The blower pump is controlled by a micro-processor which allows the caregiver total control of comfort and chosen therapy. Cycle time ranges from 5 to 95 minutes. The blower pump inflates the mattress within minutes, reducing the waiting time for therapeutic treatment to begin.Blower Features:

  • Adjustable Comfort
  • Cycle time ranges from 5 to 95 minutes
  • Alternating Mode
  • Static Mode for safe transfer and care
  • Bariatric Mode for patients over 350 lbs
  • Auto-Firm for quick inflation
  • Audible caregiver alarms
  • Lock-out mode
  • Large, easy to read display

Blower Options:

  • Pulsating low air loss pump Model 9511-PS allows caregivers to provide pulsating low air loss therapy.
  • Automatic Fowler Sensor detects patient positioning and automatically increases power as needed in the sacral area. 10% adjustment for a 30º incline. 5% additional adjustment for a 40º incline.
optional SRS side rail safety system Optional SRS
The optional SRS – Side Rail Safety System can be added to any mattress. The SRS meets existing entrapment standards.
MODEL 9500
Power-Pro Elite ™Alternating Pressure Air Mattress – Mattress and Pump
Dimensions:
36″ x 80″ x 9″
Weight:
23 lbs.
Air Cells:
18 – 9 ” deep cells
Ventilated bladders with air holes throughout the mattress
Mattress Cover:
Vyvex-III™ – Urethane coated, multi-stretch, low shear, moisture resistant / vapor permeable quilted cover. The removable, zippered cover, is anti-microbial and meets California Technical Bulletin #117 for fire-retardancy.
MODEL 9511
Power-Pro Elite ™ – Pump only
Dimensions:
17″L x 7″W x 10.5″H
Weight:
12 lbs.
Electrical:
120V 60 hz
Listings:
UL® 544 Medical Equipment
Cycle Time:
5 – 95 Minutes
Air Flow:
1800 Liters per minute
Current:
5A
Ground Resistance:
0.1 ohms maximum
Power Cord:
12 ft. cord with hospital grade plug
WARRANTY
Pumps:
1 Year limited
Mattress:
1 year limited
Cover:
6 months limited
ORDERING INFORMATION
Model 9500
Power Pro™ Elite 650 lbs. capacity 36″ x 80″ x 9″
Model 9542BAR
Power Pro™ Elite 750 lbs. capacity 42″ x 80″ x 9″
Model 9548BAR
Power Pro™ Elite 1000 lbs. capacity 48″ x 80″ x 9″
Model 9511
Power Pro™ Elite Blower pump only
Model 9511-PS
Power Pro™ Elite Blower pump with pulsating low air loss
Model 9502
Power Pro™ Mattress only with Zippered Quilted Cover 36″
Model 9502-42
Power Pro™ Mattress only with Zippered Quilted Cover 42″
Model 9502-48
Power Pro™ Mattress only with Zippered Quilted Cover 48″
Model 9500-EXP-1
Power Pro™ Mattress Variable Width 36″ – 42″ – 48″, 1000 lbs
Model 9526
36″ Zippered Replacement Cover
Model 9526-42
42″ Zippered Replacement Cover
Model 9526-48
48″ Zippered Replacement Cover
Model 9526-SRS
36″ Zippered Replacement Cover with Side Rail Safety System
PDAC APPROVED
Medicare Code EO277
Power Pro™ Elite meets Group 2 Support Surface requirements for Medicare EO277. Patient must meet all medical criteria to qualify for reimbursement.
