Alternating Pressure Mattress with Low Air Loss

Alternating Pressure Mattress System

The Tradewind™ Series Mattress System is the newest generation of high performance Therapeutic Mattress Systems. Tradewind™ offers unparalleled performance and value for the prevention and treatment of Stage I-IV pressure ulcers. The Tradewind™ series is comprised of a heavy-duty low air loss mattress and your choice of three, dual-mode alternating pressure pumps. User friendly controls and ease of setup make Tradewind™ ideal for acute, long term care, hospice and the home bound patient. Tradewind™ series mattress utilizes 17 independent 8″ deep low air loss cells to provide pressure redistribution.  Multi-directional stretch cover is loose fitting and will conform to the patient. The mattress was designed to fit all standard hospital beds. The 35” Tradewind™ 1000 and Tradewind™ 3000 support patients weighing up to 350 lbs. while the Tradewind™ ATS is also available in 42” & 48” bariatric sizes and supports up to 750 lbs.  Tradewind™ meets California Technical Bulletin #117 for fire retardancy. An optional fire barrier is available to meet the most stringent fire safety requirements when requested. The innovative Tradewind™ ATS-RC Alternating Pressure with Low Air Loss mattress system features a handheld remote control for patient comfort and independence 24 hours a day. tradewind ATS-RC with remote control
tradewinds alternating pressure mattress bladder tradewind alternating Pressure pad SRS

Bladders: Ventilated low air loss alternating pressure mattress bladders Air holes in sacral and torso areas help minimize skin maceration by reducing excess moisture under patient. Air cells are constructed of (TPU) thermal polyurethane, ensuring strength, durability and patient comfort. Static air base prevents bottoming out.

Patient Safety System: Shown with optional Side Rail Safety System
Cover: Multi-directional stretch fabric transfers moisture away from the patient’s skin. The cover is low shear, washable, anti-microbial, fluid resistant and fire retardant. Cover is loose fitting and will conform to the patient.
CPR Valve: Quickly deflates mattress system for medical emergencies. A simple twist releases the air immediately.
TRADEWIND™ SERIES CONTROL UNITS:The Tradewind™ series offers therapists a choice of three dual mode pumps. All Tradewind™ pumps feature Alternating Pressure and Static modes as standard. The Alternating Pressure Mode provides the therapeutic benefit of reactive hyperemia and redistributes pressure well below 32mmHg, while the Static Mode provides gentle low air loss with constant pressure redistribution and support. This allows nursing to perform patient care.



tradewindmattTRADEWIND™ 1000 MATTRESS PUMP:Mechanical pump features quiet operation, manual control dial to adjust firmness, Low Pressure Alert, locking transport device, easy access filter, heavy duty hanger brackets. Supports up to 350 lbs.
tradewind 1000 alternating pressure mattress pump
   tradewind 3000 alternating pressure mattress pump



TRADEWIND™ 3000 MATTRESS PUMP:Digital pump features quiet operation, digital controls to adjust firmness, Low Pressure Alert, Auto Alarm, Locking transport device, easy access filter, heavy duty hanger brackets. Supports up to 350 lbs.







TRADEWIND™ ATS MATTRESS PUMP:

Digital pump features quiet operation, digital controls to adjust firmness, Low Pressure Alert, Auto Alarm, Auto-Firm, Lock-Out, Variable Cycle Time, Locking transport device, easy access filter, heavy duty hanger brackets. To be used with the 35” mattress and the 42” & 48” bariatric mattresses. Supports up to 750 lbs.

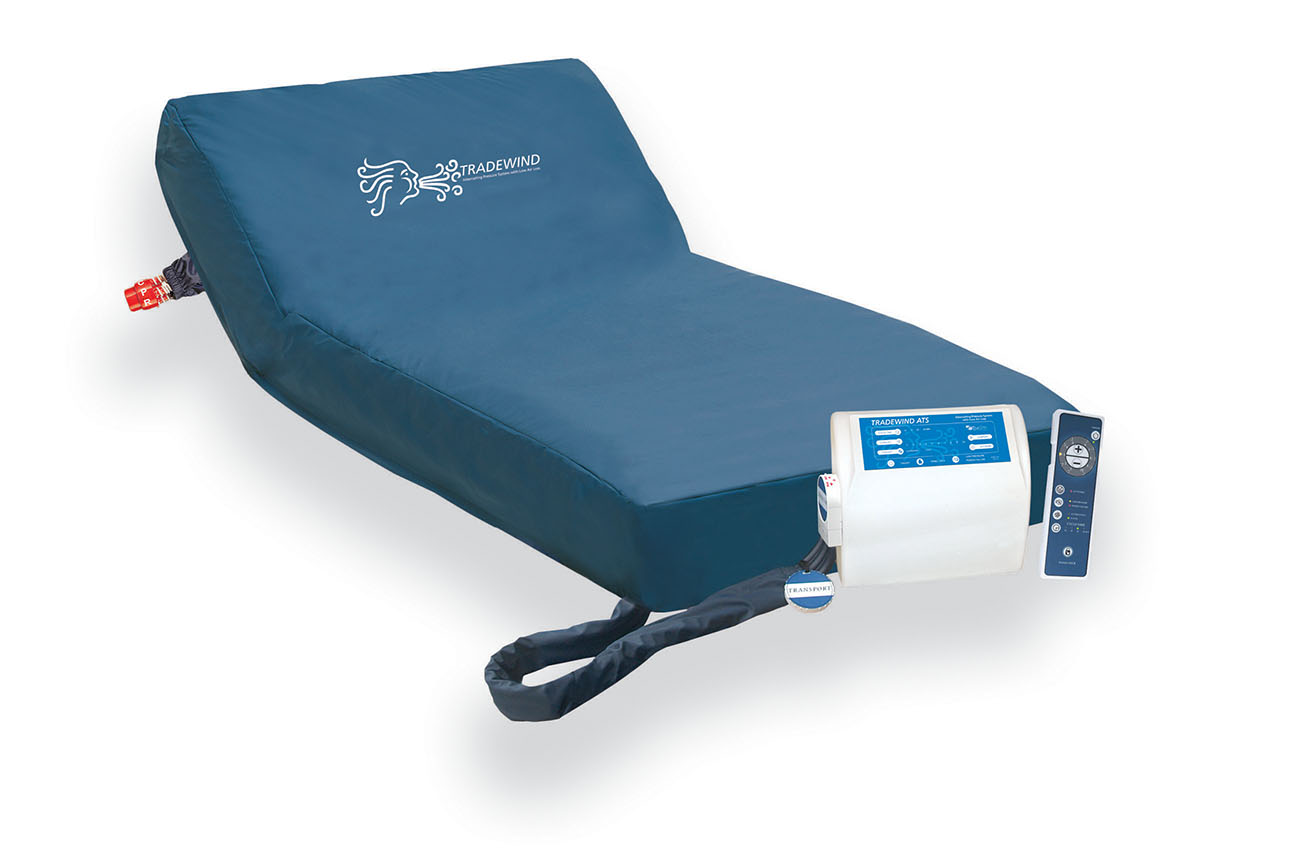

TRADEWIND™ ATS-RC MATTRESS PUMP WITH HANDHELD REMOTE FOR PATIENT INDEPENDENCE:

The Tradewind™ ATS-RC is the first Alternating Pressure Mattress System with Low Air Loss to provide patient comfort and independence 24 hours a day via the Hand Held remote control. The ATS-RC allows the patient to control the pump digital control features.

tradewind ATS alternating pressure mattress pump
 ATS-RC tradewind with remote control
tradewind pump back EASY ACCESS FILTER
Reduces damaging dust particles for maintenance free use.HEAVY-DUTY ADJUSTABLE HANGER BRACKETSecure control unit to fit all makes of hospital beds.
TRANSPORT locking device Transport locking device Ensures mattress remains inflated during a power outage or for patient transport. Reinforced hoses prevent air restriction due to kinking. PUMP CONTROL UNIT FEATURES The optional inflator, deflator pump To assist for rapid set-up or take down. Inflate or deflate the mattress through our multi-purpose CPR Valve.
MODEL TRW-3580
Tradewind ™ – Alternating Pressure Mattress only
Dimensions:
35″ x 80″ x 8″
Weight:
18 lbs.
Air Cells:
17 – 8″ sacs
Air Cell Options:
8 Low Air Loss Bladders
Mattress Cover:
Vyvex-III™ – Urethane coated, multi-stretch, low shear, moisture/vapor permeable quilted cover. Removable zippered cover, is anti-microbial and meets California Technical Bulletin #117 for fire-retardancy. Adjustable anchor straps secures mattress to bed frame.
MODEL TRW-1001
TRW-1001 – Pump only
Dimensions:
10.5″L x 9.5″W x 4.5″H
Weight:
5.1 lbs.
Electrical:
120V 60 hz
Listings:
MET
Cycle Time:
10 Minutes
Air Flow:
6.5 – 8 Liters per minute
Current Usage:
less than 100 micro amps
Ground Resistance:
0.1 ohms maximum
Power Cord:
15 ft. cord
Construction:
ABS fire retardant UL 94V-0
MODEL TRW-3001
TRW-3001 – Pump only
Dimensions:
10.5″L x 9.5″W x 4.5″H
Weight:
6.1 lbs.
Electrical:
120V 60 hz
Listings:
MET
Cycle Time:
10 Minutes
Air Flow:
6.5 – 8 Liters per minute
Current Usage:
less than 100 micro amps
Ground Resistance:
0.1 ohms maximum
Power Cord:
15 ft. cord
Construction:
ABS fire retardant UL 94V-0
MODEL TRW-ATS-01
TRW-ATS-01 – Pump only
Dimensions:
13.5″L x 11″W x 6″H
Weight:
8.75 lbs.
Electrical:
120V 60 hz
Listings:
MET
Variable Cycle Time:
10, 15, 20, 25 Minutes
Air Flow:
6.5 – 8 Liters per minute
Current Usage:
less than 100 micro amps
Ground Resistance:
0.1 ohms maximum
Power Cord:
15 ft. cord
Construction:
ABS fire retardant UL 94V-0
WARRANTY
Pumps:
1 Year limited
Mattress:
1 year limited
Cover:
6 months limited
ORDERING INFORMATION
Model TRW-1000
35″ Alternating Pressure Mattress with Low Air Loss & TRW-1001 Pump Control unit
Model TRW-1001
TRW-1001 Pump Control Unit
Model TRW-3000
35″ Alternating Pressure Mattress with Low Air Loss & TRW-3001 Pump Control unit
Model TRW-3001
TRW-3001 Pump Control Unit
Model TRW-ATS
35″ Alternating Pressure Mattress with Low Air Loss & TRW-ATS Pump Control unit
Model TRW-ATS-RC
35″ Alternating Pressure Mattress with Low Air Loss & TRW-ATS-RC Pump with Hand Held Remote Control unit
Model TRW-ATS-01
TRW-ATS-01 Pump Control Unit
Model TRW-CVR-SRS
Cover with Side Rail Safety System
Model TRW-3580
35″ Alternating Pressure Mattress with Low Air Loss
Model TRW-4280
42″ Alternating Pressure Mattress with Low Air Loss
Model TRW-4880
48″ Alternating Pressure Mattress with Low Air Loss
Model TRW-CVR
Zippered Replacement Cover
Model TRW-CVR-SRS
Zippered Replacement Cover with Side Rail Safety System
Model TRW-CVR-42
42″ Zippered Replacement Cover
Model TRW-CVR-SRS-42
42″ Zippered Replacement Cover with Side Rail Safety System
Model TRW-CVR-48
48″ Zippered Replacement Cover
Model TRW-CVR-SRS-48
48″ Zippered Replacement Cover with Side Rail Safety System
Replacement Parts
Call 800 795-6115
PDAC APPROVED
Medicare Code EO277
Tradewind™ alternating pressure mattress with low air loss meets Group 2 Support Surface requirements for Medicare EO277. Patient must meet all medical criteria to qualify for reimbursement.
