Alternating Pressure Mattress with Low Air Loss

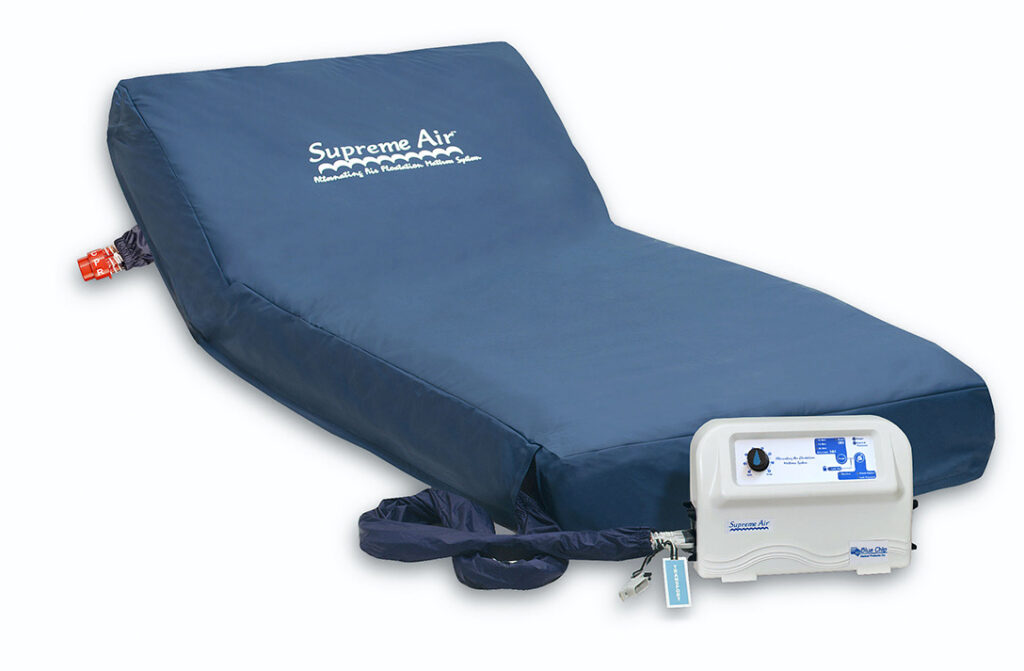

Supreme Air Alternating Pressure Mattress System – Model 9600

The Supreme Air™ Alternating Pressure Mattress with Low Air Loss combines the most advanced technology and clinically effective features in a portable system. The pressure redistribution mattress utilizes 18 independent 8″ deep air cells to provide pressure redistribution for the prevention and treatment of Stages I-IV pressure ulcers. User-friendly controls and ease of setup make Supreme Air™ ideal for institutional use and the homebound patient. The cover is loose fitting and will conform to the patient. The mattress was designed to fit all standard hospital beds. Supreme Air™ alternating pressure mattress supports patients weighing up to 350 lbs. Supreme Air™ meets California Technical Bulletin #117 for fire retardancy. An optional fire barrier is available to meet the most stringent fire safety requirements when requested. Fire evacuation handles are standard.

Bladders: Ventilated low air loss alternating pressure mattress bladders include 40 air holes in sacral and torso areas to help minimize skin maceration by reducing excess moisture under the patient. Ventilated bladders help in the prevention and treatment of pressure ulcers. Air cells are constructed of laminated medical-grade nylon and (TPU) thermal polyurethane fabrics. This combination ensures strength, durability, and patient comfort. Four bladder heel section provides advanced dynamic therapy specific to the prevention and treatment of heel ulcers.

supreme air alternating pressure mattress

ventilation mattress new foot

dual bladder designFire Evacuation Handles
Fire Evacuation Handles
Supreme Air™ Alternating Pressure Mattress with Side Rail Safety System- Model 9600-SRS
Dual Bladder Design: The split bladder provides a static air base. This cushion of air at the base of the mattress provides patient comfort, protection, and support to help prevent bottoming out during power outages or accidental disconnection of hoses.
Patient Safety System: Shown with optional 9600-SRS
Foam Side Rail Safety System. Helps to prevent accidental falls
Cover: Vyvex III™ multi-directional stretch fabric transfers moisture away from the patient’s skin. The cover is low shear, washable, anti-microbial, fluid-resistant, and fire retardant. The cover is loose fitting and will conform to the patient.
CPR Valve: CPR Valve quickly deflates alternating pressure mattress system for medical emergencies. A simple twist releases the air immediately. This multi-purpose CPR Valve can be used to inflate or deflate the mattress with our optional blower pump.
supreme air pump cc 3 PUMP CONTROL UNIT FEATURES:
Control Unit includes two modes of operation:

  • Alternating Mode
    Alternating pressure provides the therapeutic
    benefit of reactive hyperemia and redistributes pressure well below 32mmHg.
  • Static Mode
    Static mode provides gentle low air loss with constant pressure redistribution and support. This allows nursing to perform patient care.

Control dial adjusts mattress from soft to firm for patient comfort.

Low-Pressure Alert and Auto Alarm System offer dual protection to notify caregivers in case of power outages or accidental disconnection of hoses.

Alternating Air Mattress Supreme Air Digital Pump
Optional Digital Pump
pump hanger Deluxe adjustable hanger brackets
Spring-loaded hanger bracket secures control unit to fit all makes of hospital beds. Easy access filter
reduces damaging dust particles for maintenance-free use.
PUMP CONTROL UNIT FEATURESPUMP CONTROL UNIT FEATURES Transport locking cap significantly reduces air loss to help ensure the mattress remains inflated during patient transport or power outage.

Reinforced hoses prevent air restriction due to kinking.

PUMP CONTROL UNIT FEATURES The optional blower pump can inflate or deflate the mattress through the multi-purpose CPR valve in under four minutes. This reduces waiting time for
therapeutic treatment to begin.
MODEL 9600
Supreme Air ™ – Alternating Pressure Mattress only
Dimensions:
35″ x 80″ x 8″
Weight:
18 lbs.
Air Cells:
18 – 8″ sacs
15 Alternating pressure cells
3 Static cells in the head section
10 Low air loss cells with air holes
Heel Protection:
Four Specialized Alternating Pressure Heel Protection Bladders
Mattress Cover:
Vyvex-III™ – Urethane coated, multi-stretch, low shear, moisture/vapor permeable quilted cover. The removable zippered cover is anti-microbial and meets California Technical Bulletin #117 for fire-retardancy. Adjustable anchor straps secure the mattress to the bed frame.
MODEL 9601
Supreme Air ™ – Pump only
Dimensions:
12.5″L x 9″W x 4.5″H
Weight:
7 lbs.
Electrical:
120V 60 hz
Listings:
UL® 544 Medical Equipment
Cycle Time:
10 Minutes
Air Flow:
6.5 – 9.5 Liters per minute
Current Usage:
less than 100 microamps
Ground Resistance:
0.1 ohms maximum
Power Cord:
12 ft. cord
Construction:
ABS fire retardant UL 94V-0
WARRANTY
Pumps:
1 Year limited
Mattress:
1 year limited
Cover:
6 months limited
ORDERING INFORMATION
Model 9600
Alternating Pressure Mattress and Pump Control unit
Model 9600-SRS
Alternating Pressure Mattress Side Rail System & Pump Control Unit
Model 9601
Pump Control Unit
Model 9601-DP
Pump Control Unit
Model 9620
Mattress only
Model 9622
Carry Bag with Strap
Model 9623
Electric Inflator & Deflator
Model 9624
Replacement 8″ Low Air Loss Alternating Pressure Mattress Bladders
Model 9625
Replacement 8″ Cell Bladders
Model 9626
Replacement Zippered Cover
Model 9626-SRS
Replacement Cover with SRS Side Rail System
Model 9642
42″ Supreme Air Mattress System
Model 9642-SRS
42″ Supreme Air Mattress System with side rail safety system
PDAC APPROVED
Medicare Code EO277
Supreme Air™ alternating pressure mattress with low air loss meets Group 2 Support Surface requirements for Medicare EO277. Patients must meet all medical criteria to qualify for reimbursement.
