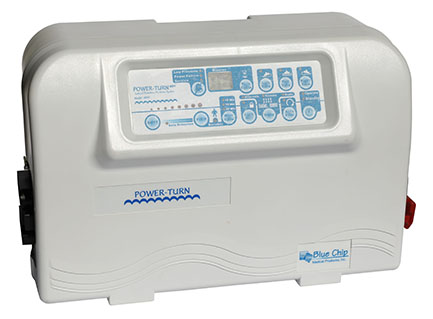

Power Turn Elite™ Lateral Rotation, Alternating Pressure with True Low Air Loss Mattress System- Model 9800 A

Lateral Rotation • Alternating Pressure • True Low Air Loss • Pulsation

• Lateral Rotation
• Alternating Pressure
• Pulsation/Immersion
• True Low Air Loss.

The Model 9800-A offers advanced automated wound care functions including auto-detection and a two-stage Fowler function. The durable dual bladder mattress design utilizes 20 independent 9″ deep air cells providing advanced pressure redistribution in a 2 up/1 down series. This ensures superior patient comfort, support and the prevention and effective treatment of Stages I-IV pressure ulcers. Lateral Rotation Therapy reduces the risk of pulmonary complications for patients who are immobile. A Full, Left or Right Turn mode is offered. Pulsation mode offers an immersion therapy. The mattress is designed to fit all standard hospital beds and includes a static air base. Inflatable side rail safety bolsters are optional. The Power-Turn® Elite Model 9800-A is offered in 36”, 42” & 48” to support 650 lbs. to 1000 lbs. The user-friendly controls and ease of setup make Power-Turn Elite™ Model 9800-A , ideal for institutional use. Power Turn meets Federal and State fire control safety standards.

• Auto-Firm
• Modes – Alternate/Pulsate/Static
• Panel Lock-Out
• Alternate/Pulsate Cycle Time Selection
• Bariatric Mode
• Comfort Control
• Auto-Detection
• Low Pressure, Power Failure Alarms
• Turn Cycle Time Selection
• Left Turn, Right Turn & Full Turn

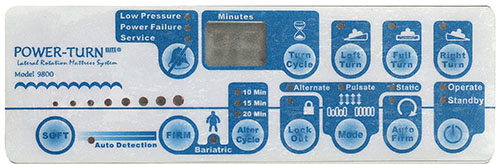

• Easy to Read Digital Display

PUMP CONTROL MODES & FEATURES:
Alternating Mode
Alternating pressure provides the therapeutic benefit of reactive hyperemia and redistributes pressure well below 32mmHg. 10, 15 & 20 minute cycle times.
Lateral Rotation
Offers a left, right and full turn and cycle times from 10 – 95 minutes.
Static Mode
Inflates all bladders for patient care & transfer.
Pulsation
Immersion Therapy, 5 minute cycle time.

Automatic Functions:
Auto Detection Monitors patient & adjusts every two hours to improve therapy and reduce workload.
2-Stage Fowler Function
Adjusts pressures in the sacral area based on patient position. Incline 30º (LL) increases 10%, 40º (LH) incline increases by an additional 5%. Reduces sliding and skin shear.
